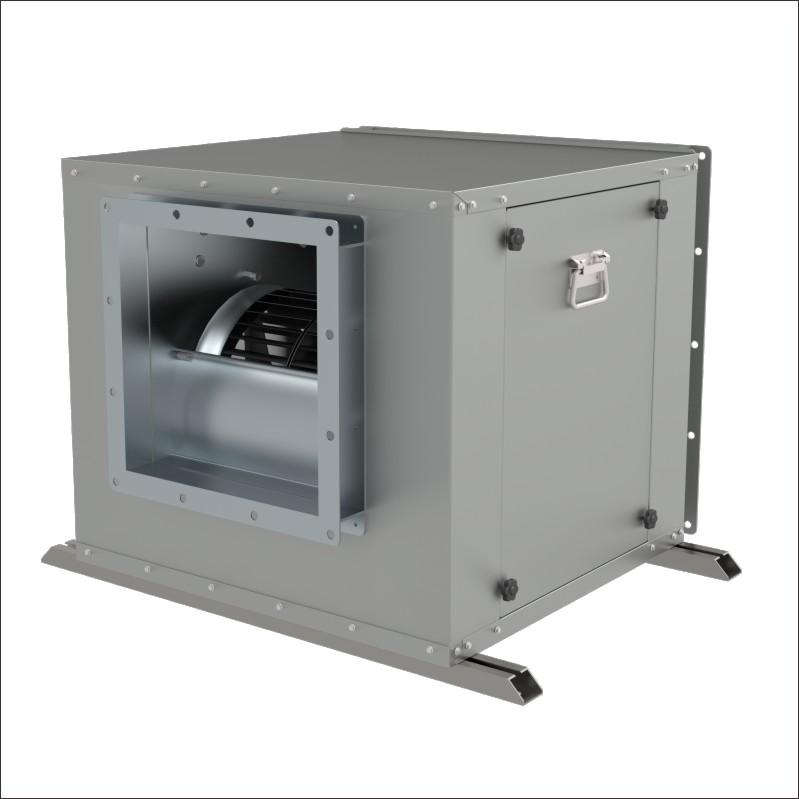

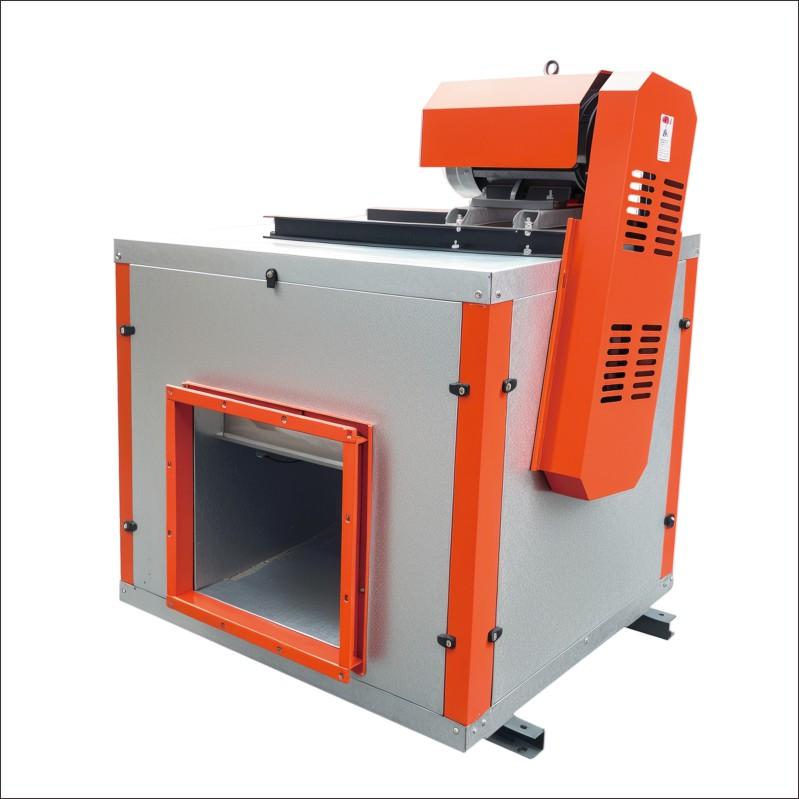

HTFC(DT) Low Noise Cabinet Type Centrifugal Fan

HTFC(DT) Low Noise Cabinet Type Centrifugal Fan

HTFC Fan Box: Mainly composed of the box frame, panels, box base frame, flanges, internal fan, fan base frame, motor, transmission device, etc.

Internal Fan: The fan is certified by the American AMCA. The volute is made of high-quality cold-rolled steel, processed through seaming or spot welding. The impeller is a forward multi-blade low-noise type, with dynamic balance precision meeting the national standard DIN/ISO 1940 and AMCA2004/3G2.5 requirements. The main shaft of the fan is made of 40Cr, machined, heat-treated, and ground for high strength.

Box: a. The external panels of the fan use imported or domestic high-quality cold-rolled steel.

b. The internal panels of the fan box use galvanized steel.

c. The base, frame, and impeller all undergo surface plastic spraying for excellent corrosion resistance, ensuring effective protection against scratches or damage during processing, transportation, and installation.

d. High cost-performance sound-absorbing cotton features two layers of membrane on each panel, with high corrosion resistance, low shrinkage at high temperatures, long service life, and high sound absorption.

e. High-quality prisms make the entire box sturdy, stable, and aesthetically pleasing. The base frame is made of high-quality channel steel and C-shaped steel welded structure, sprayed after welding, ensuring a solid structure.

f. The fan is equipped with a cone-fitting pulley for easy installation and maintenance.
